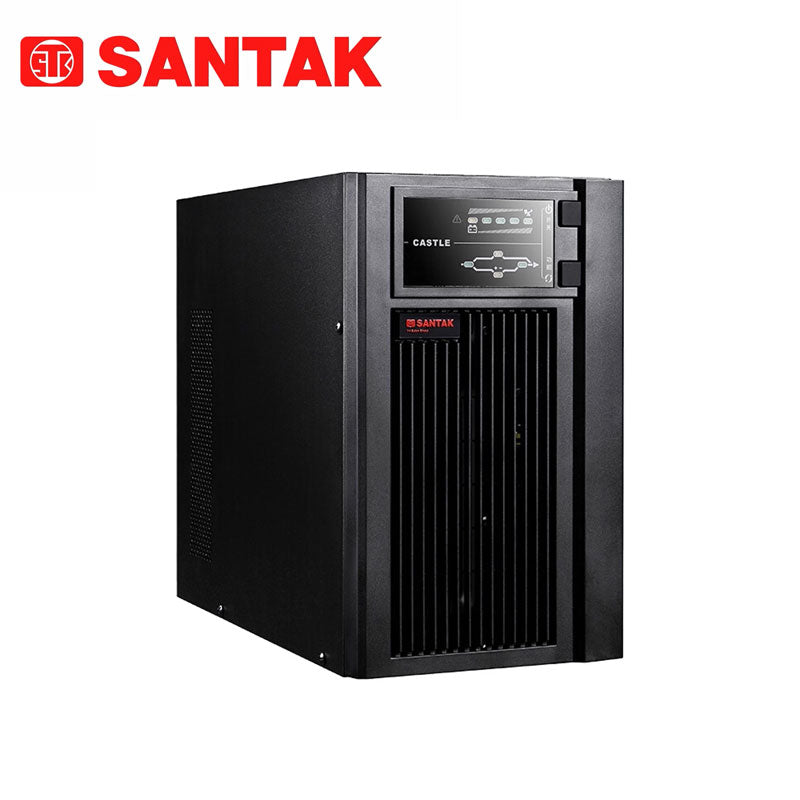

Santak Castle 2kVA C2K
Santak Castle 2kVA C2K
$345.00
- ដឹកជញ្ជូនឥតគិតថ្លៃ សំរាប់ទីតាំងក្នុងក្រុងភ្នំពេញ
- ធានា ផលិតផល Original
Description
2KVA UPS power supply SANTAK ONLINE C2K (LCD)
-Function of power saving, voltage stabilization, automatic frequency stabilization, anti-pulse, noise filter, lightning protection ...
-True Online Double Conversion Technology.
-Capacity: 2KVA / 1800W.
-Power input: 220VAC (100 ~ 300VAC)
-Output power: 220VAC ± 1%
-Power saving time: 21 minutes with 50% load.
-Sine waveform output voltage is true at all grid states and does not depend on the remaining capacity of the battery source.
-Ensuring the stability of power source for Electrical-Electronics-Telecommunications equipment. Suitable for use in Data Centers, Servers, network devices, ATMs, electronics, telecommunications, security, analysis, measurement, medical testing, office equipment and many applications Other important uses ...
-Lightning protection function for devices.
INPUT
Nominal Voltage 220/230/240 VAC
Voltage threshold100 ~ 300 VAC
Number of phases
1 phase (2 wires + ground wire)
Rated frequency 50/60 Hz (40 ~ 70 Hz)
Power factor 0.99
OUTPUT POWER
Capacity 2 KVA / 1.8 KW
Voltage 220/230/240 VAC ± 1%
Number of phases
1 phase (2 wires + ground wire)
Wave
True sine wave (true sin wave)
Frequency
Synchronized with power at 50 / 60Hz ± 4Hz or 50/60 Hz ± 0.05 Hz (battery mode)
Efficiency > 91% (> 97% - ECO Mode)
Ability to withstand overload 108 ~ 150% within 30 seconds
Output power IEC 10A * 4
BYPASS MODE
Automatically switch to Bypass mode
Overload, UPS error
BATTERY Battery type
12 VDC, airtight, maintenance-free, life of over 3 years.
Power saving time > 3.5 minutes
DISPLAY
Dashboard
Start button / Siren off / Power off button
LCD display status
Grid mode, battery mode, Bypass mode, load capacity, battery capacity, state of failure.
The web of communication
RS232, expansion slot: AS400 Card, CMC Card, NMC Card (Order according to customer requirements).
Management software
Winpower management software is included, enabling monitoring, auto turn on / off of UPS and system.
Supports all Windows, Linux, Unix, and Sun operating systems
Time switches 0 ms
OPERATING ENVIRONMENT
Operating environment temperature 0 ~ 400c
Operating environment humidity 20% ~ 90%, no condensation.
STANDARD
Noise when operating 40 dB does not include sirens
Electromagnetic fields (EMS)
IEC 61000-4-2 Level 4 (ESD)
IEC 61000-4-3 Level 3 (RS)
IEC 61000-4-4 Level 4 (EFT)
IEC 61000-4-5 Level 4 (Surge)
Conductivity - Emission En 55022 CLASS B
SIZE / WEIGHT
Size (R x D x C) (mm) 190 x 399 x 330
Net weight (kg) 17.0
