Description

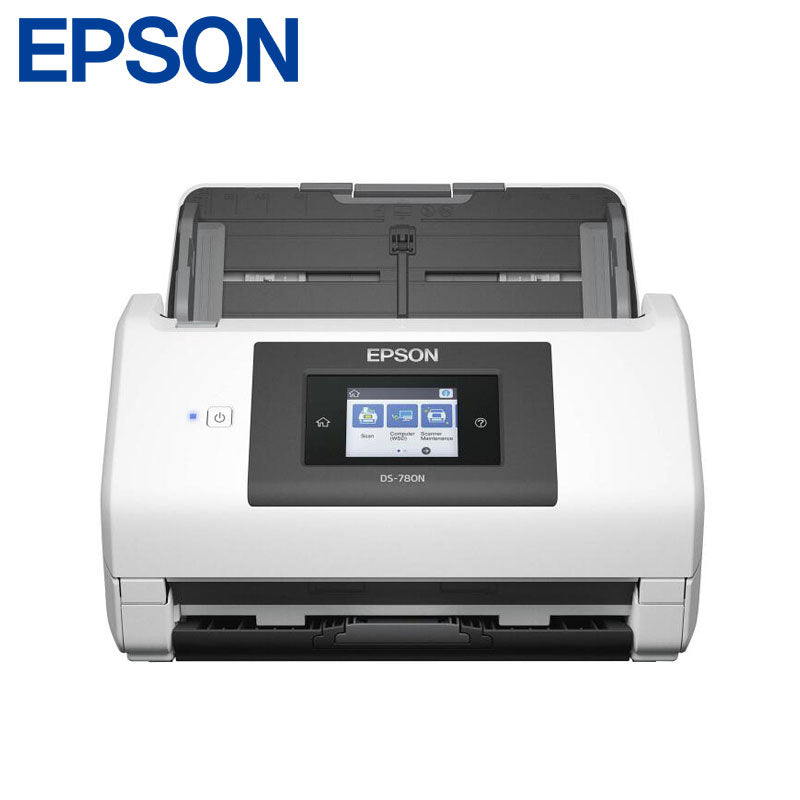

-Epson DS-780N Network Color Document Scanner

Fast, easy, efficient document scanner with built-in networking.
Designed for greater efficiency plus ease of use via a simple touchscreen, the DS-780N network document scanner delivers high-quality scans up to 45 ppm/90 ipm1, plus a high-volume 100-page ADF. Its intuitive touchscreen delivers quick access to 30 user-defined jobs. Built-in networking2 offers easy workgroup sharing, while included TWAIN and ISIS® drivers ensure integration with existing professional document management systems. A peak daily duty cycle up to 5,000 sheets3 provides added dependability. And, it’s backed by an industry-leading 3-year limited warranty, with an Advance Exchange program featuring free Next-Business-Day shipping4.

Specifications Scanner:
Scanner Type: Sheet-fed, 1-pass, duplex color scanner
Optical Resolution: 600 dpi
Maximum Resolution: 1200 dpi interpolated
Monochrome Bit Depth: 1-bit
Output Resolution: 50 to 1200 dpi
Effective Pixels: 5100 x 9300
Light Source: 3-color RGB LED
Scanning Speed: Letter size: 445 ppm/90 ipm: 200 and 300 dpi Black-and-White, Color, Gray; 11 ppm/22 ipm: 400 and 600 dpi Black-and-White, Gray, Color2

Automatic Document Feeder:
Capacity: 100 sheets
Document Sizes: Minimum: 2" x 2", Maximum: 8.5" x 240" at 200 dpi, Maximum: 8.5" x 215" at 300 dpi
Daily Duty Cycle: 5,000 sheets3
Paper Weight: 27 − 413 g/m2
Consumables: Roller assembly kit: 200,000 pages

Scan Features:
Other: Rigid plastic ID card scanning (including embossed cards)
Card thickness maximum: less than 1.24 mm with emboss
Business card scanning
Oversized folded document scanning with optional carrier sheet
Ultrasonic double-feed detection
USB connection for authentication device, unit security lock (Kensington type)
Panel Display: Front panel touchscreen with up to 30 user-definable scan jobs
Connectivity:
Standard Connectivity: SuperSpeed USB 3.0, Ethernet (RJ-45, 1000Base-T/10Base-T/100Base-TX), USB 2.0 (Host for authentication devices)

Scanner Details: Included Software: Epson Scan 2, Document Capture Pro, EMC Captiva ISIS
Driver Support: TWAIN, ISIS

General:
Operating Systems: Windows® 10 Windows 8/8.1 Windows 7 Mac® OS X® 10.9.x – macOS® 10.12.x
Software requires Internet connection for download and installation

Server Systems:
Windows Server® 2012 R2
Windows Server 2012
Windows Server 2008 R2
Windows Server 2008
Windows Server 2003 R2
Windows Server 2003 SP2
Temperature: Operating: 41 ° to 95 °F (5 ° to 35 °C)
Humidity: Operating: 10 – 80% (no condensation)
Dimensions: Product only: 11.7" x 8.3" x 8.5"
Weight: Product only: 8.2 lb
Country of Origin: Indonesia

Power:
Rated Voltage:100 – 240 VAC
Rated Frequency:50 – 60 Hz
Rated Current:1.2 A
Power Consumption: Operation: 17 W
Ready: 8.8 W
Sleep: 1.3W  Off: 0.1 W
Output Voltage of AC Power Adapter:24 V DC
